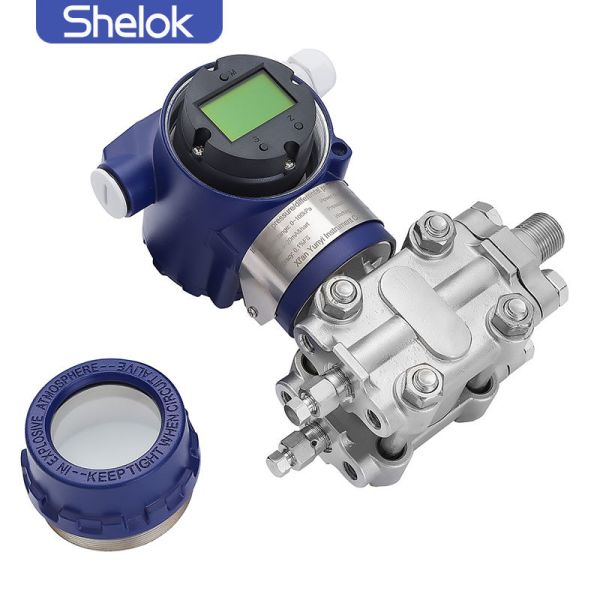

3051 Gauge Pressure Transmitter 4-20mADC HART Protocol OEM Customized Digital Display Industrial Durable

Name: 3051 Gauge Pressure Transmitter 420mADC HART Protocol OEM Customized Digital Display Industrial Durable
Brand: Yunyi
Price: 131 USD

Quality 3051 Gauge Pressure Transmitter 4-20mADC HART Protocol OEM Customized Digital Display Industrial Durable for sale

Brand Name : Yunyi

Model Number : YD3051

Certification : CE/RoHs

Place of Origin : China

MOQ : 1

Price : $131, 10-499 pieces

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000 pieces/year

Delivery Time : 10 working days

Packaging Details : Carbon box

Vacuum Resistance : 10 mbar (0.15 psi)

Wetted Material : 316L

Maximum Turndown Ratio : 100:1

Pressure Range : -0.1....0~0.01... ~100MPa

Customization : OEM

Safety Grade : IP65

Display : Optional LCD

Housing Protection : IP65

Media : liquid, gas, or steam flow

Connection : M20*1.5(2pcs)

Storage Temperature : -40ºC~100ºC

Mounting : Direct or remote

Pressure Type : Differential Pressure sensor

Protection Class : IP 65 Pressure Transmitter

Output Signal : 4 to 20 mA DC with digital communication

Contact Now

Product Introduction

The 3051 is a smart pressure transmitter with high accuracy. It supports differential pressure, gauge pressure and absolute pressure measurement. The output signal is 4 to 20 mA with HART protocol. It has a stainless steel housing and an optional LCD display. This transmitter is reliable for industrial use.

Application Scope

The 3051 pressure transmitter is widely used in oil and gas, chemical, power generation, water treatment and HVAC systems. It measures flow, level and pressure of gas, steam or liquid in pipelines and tanks. It works well in normal and hazardous areas with its optional explosion proof version.

3051 Gauge Pressure Transmitter 4-20mADC HART Protocol OEM Customized Digital Display Industrial Durable

5 Key Selling Points

High Accuracy & Smart Output – ±0.075% FS accuracy with 4-20mA + HART digital protocol for precise, real-time pressure, flow, and level measurement.
Versatile Pressure Ranges – Supports differential (DP), gauge (GP), and absolute (AP) pressure from 0–100 Pa to 40 MPa, suitable for gas, steam, liquid, and corrosive media.
Durable Industrial Design – Stainless steel housing, IP66/IP67 rated, with optional Ex-proof (ATEX/IECEx) for hazardous areas.
Advanced Sensor Technology – Capacitive silicon sensor with temperature compensation ensures long-term stability and minimal drift.
User-Friendly Configuration – Local LCD display, push-button zero/span adjustment, and RS485 Modbus option for easy integration into PLC/DCS systems.
